Media servers (Plex, Jellyfin, Emby, Silo, Audiobookshelf, Kavita, any other by webhook)

Mediarium downloads and organises your movies and shows; you watch them in Plex, Jellyfin, Emby or Silo. Connecting your media server lets the two work together:

• New downloads show up straight away. After each import, Mediarium asks the media server to scan the folder the new file went into, so you don't wait for its next scheduled scan.
• Refresh now. A button that asks the server to scan all of its libraries.
• Watch in Plex / Jellyfin / Emby / Silo. A title's page links straight to the same title on your media server (found by its TMDB id).
• Open Plex / Jellyfin / Emby. The play button (at the bottom of the sidebar, or in the header on a phone) opens one menu with everything that plays: the Ebook reader and Audiobook player (Mediarium Books, in its own window), the Music player (it takes you to your music library, and shows what is playing), and your media servers; pick a server to open its own web app in a new tab. Only what you have switched on is listed. Each server has its own logo (Plex, Jellyfin, Emby, Audiobookshelf; Kavita, Silo and webhooks have a simple one of ours).

Mediarium doesn't convert video, and its only player is the simple in-browser one on a title's Files card. Your media server is still the place to watch.

The page

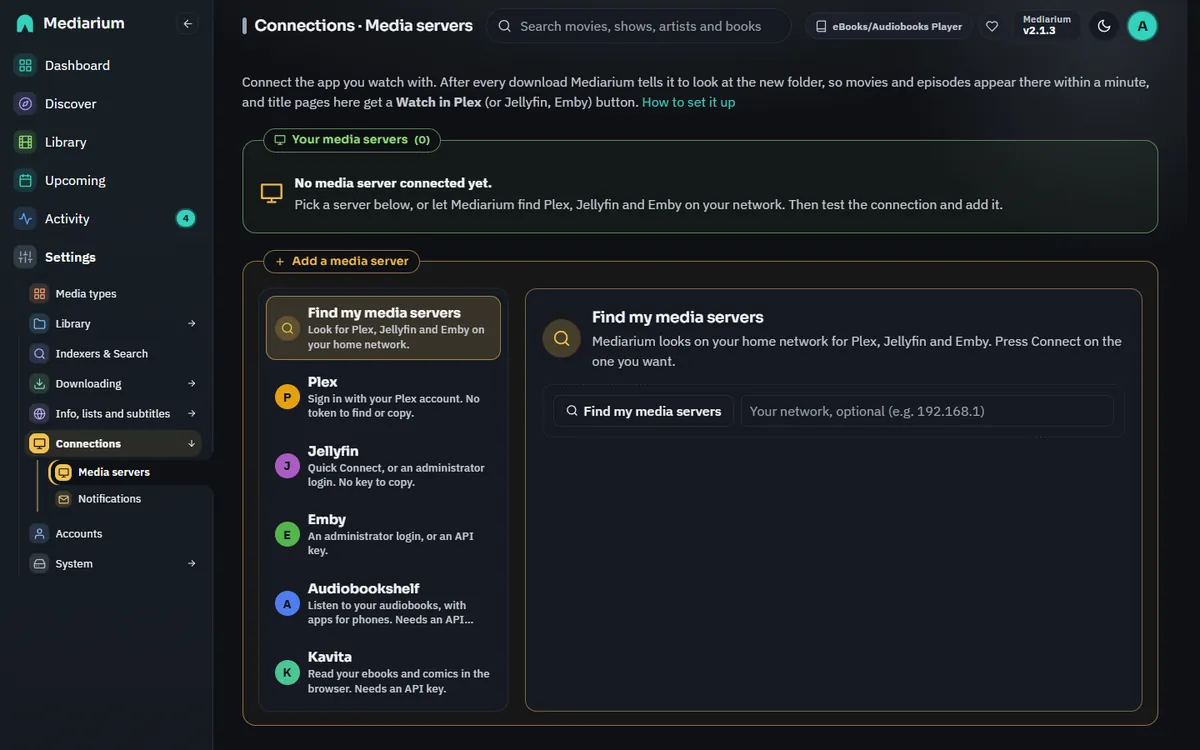

Settings > Connections > Media servers lists the servers you have added at the top, each with Test, Refresh now, Open, Edit, Disable and Remove. Below them, Add a media server has the ways to connect on the left (Find my media servers, Plex, Jellyfin, Emby) and the form for the one you pick on the right. On a phone the list becomes a row you slide sideways. What you type for one kind is kept while you look at the others, until you add the server.

Settings > Connections > Media servers: the servers you added, each with Test, Refresh now, Open, Edit, Disable and Remove, and the ways to connect another. The addresses shown are examples.

Find my media servers

Find my media servers is the first choice when you add a server. It looks for Plex, Jellyfin and Emby on your network, so you don't have to know addresses and ports. It takes about ten seconds and does two things at once. The search runs on the machine where Mediarium runs, not in your browser, so your browser doesn't ask for permission to reach the local network.

• It asks the network: Jellyfin and Emby answer a broadcast on UDP port 7359, and Plex answers its "GDM" discovery on UDP port 32414.
• It checks the usual ports (32400 for Plex, 8096 for Jellyfin and Emby) on every address of a few networks, and asks whatever answers who it is. This needs no sign-in.

When you don't type a network, Mediarium also tries the machine's default gateway and the names host.docker.internal, host.containers.internal, jellyfin, plex and emby. In Docker that reaches the computer Docker runs on (where a published Plex or Jellyfin port answers) and servers on the same Docker network.

The networks checked are the ones Mediarium itself is on (Docker's own networks last, so they don't crowd out your home network), plus the most common home networks (192.168.0.x, 192.168.1.x, 10.0.0.x, 10.0.1.x, 172.16.0.x). You can type your own instead, for example 192.168.50.0/24 or a single address like 192.168.50.10: up to 8 networks, each at most 256 addresses (/24). Only private networks are ever checked (10.x.x.x, 172.16.x.x to 172.31.x.x, 192.168.x.x, and 100.64.x.x to 100.127.x.x, which Tailscale uses); anything else is refused, so the search can never be pointed at the internet.

Each server found shows its type, name, address and version, and whether it is already added. Press Connect on one to sign in to it (see below); the address is filled in for you.

Why the broadcast may find nothing in Docker

Broadcasts only reach devices on the same network. With Docker's default bridge network, Mediarium sits on a small private network inside your computer, and broadcasts from it don't reach your home network. The port check still works, as long as you search the right network: if your home network is 192.168.50.x, type 192.168.50.0/24 and search again. The Docker network itself (usually 172.17.0.x) is always included, which finds a media server running directly on the same computer (at 172.17.0.1).

What works where:

If nothing is found, the page says so and why. In Docker's default network it suggests typing your home network, adding the server by its address, or using host networking. There is an Add one by its address button that takes you to the forms. Details in Adding a server.

Sign in with Plex

The easiest way to add Plex, and the one other Plex apps use:

1. Choose Sign in with Plex. Mediarium opens a small app.plex.tv window. If nothing opens, use the Open it here link under the button.
2. Sign in to your Plex account there (if you aren't already) and approve Mediarium.
3. Back in Mediarium, your Plex servers are listed: the ones you own, and ones shared with you. Press Add on the one that holds your library.

Mediarium tries the server's local addresses first and uses the first one that answers; if the address you picked doesn't answer, it tries the others. It saves that server's own access token (encrypted), not your Plex account's. Your account token is kept in memory only while you choose, is never saved, and is forgotten after 30 minutes. The sign-in expires after 30 minutes too, so just start again.

Mediarium needs to reach plex.tv for this. Adding a server shared with you works, but Plex only lets the owner's token rescan libraries, so Refresh after every download won't work on a shared server.

Jellyfin Quick Connect

Quick Connect lets you sign Mediarium in to Jellyfin without typing a password into it:

1. Enter the Jellyfin address (or pick it from Find my media servers) and choose Use Quick Connect. Mediarium shows a six-digit code.
2. In a Jellyfin app or web page where you are signed in as an administrator, open your user menu, then Quick Connect, and enter the code.
3. Mediarium notices within a few seconds and adds the server.

The code is valid for 10 minutes. Quick Connect has to be switched on in Jellyfin: Dashboard, General, Quick Connect. If it is off, Mediarium says so; switch it on, or use a username and password instead. Quick Connect is a Jellyfin feature; Emby doesn't have it.

Username and password (Jellyfin and Emby)

Enter the server's address and your Jellyfin or Emby username and password, then choose Sign in to Jellyfin (or Sign in to Emby). Mediarium signs in once, gets an access token from the server and saves that (encrypted). The password is sent only to your media server, and is never saved or written to the log.

Use an administrator account: Mediarium needs one to ask the server to rescan its libraries, and says so if the account isn't one. "Wrong username or password" means just that; "Could not reach ..." means the address or port is wrong or the server is off.

Signing in again to a server that is already added (by any of these methods) updates its address and token instead of adding it twice, which is also how to fix a token that stopped working.

Adding a server

You can always add a server by hand, with its address and a token or API key. You can paste the address straight from your browser's address bar: the end that only opens the server's web app (/web/#/home for Jellyfin, /web/index.html#!/home for Emby and Plex) is dropped for you. Go to Settings > Connections > Media servers and pick the kind on the left of Add a media server. For Plex, open Or enter the address and token by hand; for Jellyfin or Emby, open Or enter an API key by hand. Address you open in your browser and Folder mapping are under More options.

What is checked. The address (and the browser address, if you use one) must be an http:// or https:// address with a server name, and its port, if any, must be 1 to 65535. Tokens and API keys can't contain spaces or line breaks. Each folder mapping needs both sides filled in, and each side must be a full path (starting with / or a drive letter such as D:\). The page shows the problem under the field, and the server refuses the same mistakes from a script.

Press Test before saving. If something is wrong, the test says what: the address can't be reached, the token was refused, or the address answered but isn't a server of the chosen type. A good test lists the server's libraries and the folders they use, which helps with path mapping.

Finding your Plex token

1. Open Plex in a web browser and sign in as the server owner.
2. Open any movie or episode, choose the ... menu, then Get Info, then View XML.
3. A new tab opens. At the very end of its address is X-Plex-Token= followed by a string of letters and numbers. That string is your token.

Treat the token like a password: it gives full access to your Plex server.

Finding a Jellyfin API key

1. In Jellyfin, open Dashboard (Administration), then API Keys.
2. Choose +, name it Mediarium and save.
3. Copy the key that appears in the list.

Finding an Emby API key

1. In Emby, open Settings (Manage Emby Server), then Advanced, then API Keys.
2. Choose New API Key, name it Mediarium and save.
3. Copy the key.

Silo

Silo is a self-hosted media server. To connect it, pick Silo, type its address and paste an API key:

• Address: the one you open Silo at in your browser, usually http://<server>:8090. Silo also has a Jellyfin-compatible port (8096) for Jellyfin apps; Mediarium doesn't use that one, and Test says so if you type it.
• API key: in Silo open Admin > API keys, create one named Mediarium and copy it. It starts with sa_ and must belong to an administrator, because only they can start a scan.

Press Test (it lists Silo's libraries), then Add. What you get:

• New downloads show up straight away. After each import Mediarium asks Silo to scan just the new folder. A folder outside all of Silo's libraries gets a scan of every library instead, as with Jellyfin; add a folder mapping so that doesn't happen. A book is only sent when one of Silo's libraries holds its folder.
• Watch in Silo on movie and show pages. Silo files a movie under its TMDB id and a show under its TheTVDB id (or TMDB id, or IMDb id, when it has no TheTVDB one), so Mediarium looks it up by the same ids.
• Refresh now scans all of Silo's libraries.
• Tags as collections and What's been watched aren't available for Silo.

Silo also watches its folders for changes by itself (real-time monitoring), so new files usually appear even without Mediarium telling it. Connecting it adds the links and a scan you can count on when monitoring is off or your folders are on a network share.

Audiobookshelf and Kavita (books)

While ebooks or audiobooks are switched on, the list of servers also offers Audiobookshelf (for listening to audiobooks, with phone apps) and Kavita (for reading ebooks and comics in the browser). Both are free and run in their own container next to Mediarium. Mediarium doesn't play or show books itself: these apps do that, and Mediarium keeps them filled.

To connect one, pick it, type its address and paste a key:

• Audiobookshelf: an API token. In Audiobookshelf open Settings > API Keys and add one (older versions: Settings > Users, your user, API Token). The usual address is http://<server>:13378.
• Kavita: your API key. In Kavita open your user settings (your name, top right), then 3rd Party Clients, and copy the key. The usual address is http://<server>:5000. Mediarium swaps the key for a short sign-in token and keeps it for half an hour.

Press Test, then Add. What you get:

• New books show up straight away. After a book is downloaded, the library that holds its folder is scanned. Only libraries whose folder contains the book are scanned; a book folder outside all of them is left alone (an Audiobookshelf with audiobooks only is never asked about ebooks). Podcast libraries are never scanned.
• Read in Kavita / Listen in Audiobookshelf on the book's page, when the server has the book (looked up by title).
• Refresh now scans all of the server's book libraries.
• Movies, shows and music are never sent to these two.

If the server sees your books under another path (for example Mediarium's /audiobooks is /data/audiobooks there), add a folder mapping, the same as below.

Plex, Jellyfin and Emby are told about a new book only when one of their libraries holds its folder. They don't get a whole-library scan for it.

Any other server: Webhook

For a media server or tool Mediarium has no support of its own for, pick Webhook. After each download Mediarium sends its address a small JSON message naming the folders that changed. It's batched and path-mapped like the scans of Plex, Jellyfin and Emby, so a season pack sends one message, not one per episode.

{
  "event": "refresh",
  "kind": "movie",
  "folders": ["/data/movies/Night Harbour (2021)"],
  "source": "mediarium",
  "at": "2026-10-06T14:05:01Z"
}

• event is refresh after downloads, or test when you press Test. A refresh with an empty folders list (from Refresh on the server's card) means "scan everything".
• kind is movie, tv, music or book.
• folders are the folders as the other server sees them, after the folder mapping below.
• The Token (optional) is sent with every message as Authorization: Bearer <token>. Put a key in the token, not in the address: the address is shown on the page, while the token is stored encrypted.

Any answer from 200 to 299 counts as success; 401, 403 and 404 get their own message. A webhook has no titles to look up, so it adds no "Watch in" buttons and isn't used for tags or for what's been watched. For a message about the downloads themselves (title, quality, size), use a Webhook notification instead (Notifications), or run a script.

Path mapping

Mediarium tells the media server which folder changed, using the folder's name as Mediarium sees it. If your media server sees the same files under a different name, it won't recognise the folder. Path mapping (called Folder mapping in the app) translates the name.

Example: in Docker, Mediarium has your movies at /movies, but Plex has the same drive at /data/movies. Add one mapping:

Now a new film in /movies/Heat (1995) is reported to Plex as /data/movies/Heat (1995). Add one row per library folder (for example another for /tv). A Windows media server works too: map /movies to D:\Media\Movies.

When nothing needs translating (both see /movies), leave path mapping empty.

If Plex can't match the folder to any library, Mediarium scans all of Plex's movie (or TV) libraries instead, so the new file still appears, just more slowly; the log says so and suggests checking the mapping. Jellyfin and Emby are told the translated folder. If that folder is not inside any of the server's libraries (the server lists them, and Mediarium compares), Mediarium asks for a scan of the whole library instead, again so the new file still appears, and the log suggests adding a mapping.

What happens after an import

• Imports are collected for about 15 seconds first, so a season pack, or several downloads finishing together, cause one scan per folder rather than one per file.
• Plex scans just that folder in the library that contains it (a partial scan). Jellyfin and Emby are told which folders changed and scan those; an old version that doesn't support this gets a full library scan instead.
• It runs in the background. A media server that is down never delays or fails an import; the outcome is written to the log.
• If a server's last test or refresh failed, the dashboard shows it ("Plex (Plex) isn't working") with the reason, until a test or refresh works again. A failed refresh is also listed under Settings > System > Logs and errors (Logs and errors).
• Servers that are switched off, or have Refresh after every download off, are left alone.
• Music works the same way once the music module is on (Music): after an album is imported, its folder (<Artist>/<Album (Year)>) is scanned. Plex scans it in the library that contains it, which must be a Plex music library (type "Music"); if none contains the folder, all music libraries are scanned, never your movie or TV ones. Jellyfin and Emby are told the album folder like any other. Add a path-mapping row for the music folder too (for example /data/music to /music).

NFO and artwork files

Kodi, Jellyfin and Emby read small files that sit next to your videos: an NFO file with the title, plot, cast and the ids of the title on TMDB, IMDb and TheTVDB, and pictures for the poster and the background. Mediarium can write them. It is off by default, and you choose it separately for movies and for TV shows under Settings > Library > Folders > NFO and artwork files: one switch for the NFO files and one for the artwork, for each kind. Nothing changes for an install until you switch something on.

What is written:

The layout follows what Kodi writes itself. A movie's NFO (<movie>) has the title and original title, the plot and tagline, runtime, release date and year, TMDB's rating, the age rating, genres, countries, studios, directors, writers, the cast with their roles, a link to the trailer and, for a film in a collection, the collection's name. A show's NFO (<tvshow>) has the same kind of details with the status and networks; an episode's (<episodedetails>) has its title, season and episode number, air date and plot. The ids are written as <uniqueid type="tmdb">, imdb and tvdb, which is how Kodi, Jellyfin and Emby match the title to the right one, and also as <tmdbid>, <imdbid> and <tvdbid> for Jellyfin and Emby. A movie's <id> is its IMDb id and a show's is its TVDB id. Titles and plots come in the language chosen under Settings > Info, lists and subtitles.

An existing file is never overwritten. Mediarium looks for your own files first, whatever they are called and in whatever picture format: a folder.jpg or cover.png counts as the poster, backdrop.jpg or background.jpg as the background, logo.png as the logo, and an NFO named after the video or movie.nfo counts as the NFO. If one of them is there, nothing is written for that job. Under If a file is already there you can pick Replace the ones Mediarium wrote, which swaps only the files with the exact names above and never touches anything you named differently.

When they are written:

• After each import, before your media servers are told about it, so they find the files on their first scan. A problem (TMDB not answering, a folder that can't be written) is written to the log and never stops the import.
• For what is already in your library: Write the files under the switches goes through every title with a file on disk. Count what would be written first tells you how many files it would make, and writes nothing. The run shows its progress, can be stopped, and can be run again later; it only makes what is missing. It needs a TMDB key. TMDB is asked at a gentle pace, so a big library takes a while.
• A title whose file is missing on disk, or that lies outside its library folder, is skipped.
• The files get the permissions set under File permissions, else the usual ones. Pictures are downloaded at TMDB's full size; the picture server is image.tmdb.org, and only that address is ever asked.
• When a title is moved to another folder (Library), these files move with it if it has a folder of its own.

What each program does with them:

• Kodi reads the NFO files and the pictures.
• Jellyfin and Emby read the NFO files and the pictures too. Their local files take priority over what they download themselves, so with the NFO switched on a title shows the title and plot Mediarium wrote. Make sure the NFO reader is ticked in the library's settings (Metadata readers).
• Plex does not read NFO files; it matches titles from the folder and file names (title and year). The NFO files change nothing there. Plex can use pictures next to your files only if the library is set to use local media assets, and which names it accepts is described on Plex's own page about local media assets; Mediarium does not write pictures named specially for Plex.

Scripts (administrators): GET/PUT /api/settings/metadata-files with {"movies": {"nfo": false, "artwork": false}, "tv": {"nfo": false, "artwork": false}, "replace": false}; POST /api/library/metadata-files/run with {"dryRun": true} counts and answers at once, without dryRun it starts the run (202) with kind set to all, movies or tv; GET /api/library/metadata-files/status follows it and POST /api/library/metadata-files/cancel stops it. The setting is library.metadata_files.

Tags as collections

Tags you put on movies and shows in Mediarium (see Library) are passed on to every enabled Plex, Jellyfin and Emby server:

• Plex: the tag is added to the title's Collection field, so Plex shows a collection of that name in the library.
• Jellyfin and Emby: the title is put in a collection (box set) named after the tag, created when it doesn't exist yet.

Taking a tag off takes the title out of that collection. Only tags changed in Mediarium are touched: collections you made yourself on the server stay as they are. A title the server doesn't have yet gets its tags a few minutes after it's downloaded (once the server has scanned it). Audiobookshelf and Kavita don't get tags.

Watch in and Open links

On a movie or show page, Mediarium asks each enabled server whether it has the title (by TMDB id) and shows a Watch in link for each one that does. Answers are remembered for a few minutes (and forgotten after an import or a refresh), so pages stay quick. Every account, basic users included, sees these links; only administrators can see or change the servers themselves.

Matching needs the TMDB id on the media server's side:

• Plex: the current Plex Movie and Plex TV Series agents record TMDB ids, and so does the older "The Movie Database" agent. Titles matched only by the old IMDb or TheTVDB agents can't be found; refreshing their metadata with a current agent fixes that.
• Jellyfin and Emby: the TMDB metadata provider is on by default. A title without a TMDB id gets no link.
• Silo: movies by their TMDB id, shows by their TheTVDB id first (Mediarium knows it from TMDB), then TMDB and IMDb ids.

A server that can't be reached is simply left out of the links.

What's been watched

Under the list of servers, What's been watched is a switch, off until you turn it on. With it on, Mediarium asks Plex, Jellyfin and Emby every six hours which movies and episodes have been played, and shows it on title pages ("Watched 2 times · last on 3 Mar 2026", or "12 episodes watched" for a show) and on the Statistics page (how much of your library gets watched, and the space taken by what nobody played). Read now asks straight away.

• Plex tells Mediarium what the account whose token you connected has watched. Jellyfin and Emby tell it about all their users together (up to 25), so a title counts as watched when anyone watched it.
• Titles are matched by their TMDB id, episodes by their show, season and number. Nothing is changed on the media server.
• Switching it off clears nothing on the server and switches cleanup off too.

Cleanup rules

Once What's been watched is on, Cleanup rules can free up space. Each rule has its own switch and a number of days:

• Movies watched a while ago: a movie last watched that many days ago.
• Movies nobody watched: a movie never watched, that many days after it arrived (downloaded, or added to the library, whichever is later). A movie you asked for months ago and got yesterday is new.
• Episodes watched a while ago: an episode last watched that many days ago.
• Always keep titles tagged: tags (for example Keep, Kids) that protect a movie or a whole show from every rule.

Preview lists what the rules match right now and changes nothing. Remove these now removes the previewed titles straight away. Run once a day (off by default, and it asks first) applies the rules every day.

What is never removed: a title with a keep tag; a movie or episode downloaded again after it was last watched (someone wants to see it again); a title the media server marks as watched without saying when; and a file holding several episodes unless every one of them matches.

What a removal does: the title's files are deleted, or moved to the recycle bin when it is on (Settings > System). The title stays in your library as missing and stops being looked for, so it isn't downloaded again; switch monitoring back on to get it again. Every removal is written to Activity. For an episode only its own file and the files named after it go, never the show's folder. A run removes at most 50 titles, the ones that have waited longest first. Nothing runs unless what's been watched was read from every media server in the last two days: if one of them doesn't answer, cleanup waits, because its plays would be missing. Remove these now removes exactly what the preview listed; change a rule and it asks for a new preview.

Troubleshooting

For developers

• GET/PUT /api/watched/settings (administrators): sync (read what's been watched), status (last read, how many movies and episodes, the last problem, the last cleanup) and cleanup (enabled, moviesWatchedDays, moviesUnwatchedDays, episodesWatchedDays, keepTags; 0 days switches a rule off). Stored as watched.sync, watched.status and cleanup.rules.
• POST /api/watched/sync reads now. GET /api/watched/cleanup/preview (optionally ?rules= with the rules as JSON) lists what would be removed; POST /api/watched/cleanup/run applies the saved rules once.
• GET /api/watched (every account) gives play counts and last-played dates by movie id and, for shows, by series id with how many episodes were watched. Empty while reading is off.

Endpoints (administrators, except the links): GET/POST /api/media-servers, PUT/DELETE /api/media-servers/{id}, POST /api/media-servers/test, POST /api/media-servers/{id}/test, POST /api/media-servers/{id}/refresh, and GET /api/media-servers/links?tmdbId=&kind=movie|tv for every account. Details are in API routes. The code is in internal/mediaservers.

Finding and signing in (administrators only; no token is ever included in an answer):

Problems worth showing as they are (wrong password, can't reach, Quick Connect off) come back as 400 {"error": "..."}. The install's device id sent to plex.tv, Jellyfin and Emby is stored in the mediaservers.client_id setting.
